NTSG holds the licenses of the “OF System” and “OF Pipe” patents with which it presents itself on the market proposing new technological solutions, unique and highly sophisticated, to measure the stress conditions and other physico-chemical, mechanical and hydraulic parameters of structures belonging to different fields of engineering.
Thanks to the collaboration with construction companies, dealers, companies, teams, and with all customers, including Autostrade per l’Italia, Anas, MM, Team Artemis, Mercedes Petronas F1, NTSG has been able to optimize its solutions making them unique and leaders in the field of infrastructure monitoring.
The permanent collaboration with the CNR has allowed NTSG to refine its interpretative models and to provide its customers with a product verified by third parties.
Optic fiber system for the measurement of 2D & 3D deformations.
Proprietary software that calculates in real time the deformation, starting from the stress analysis of the object.
Direct measurements of mechanical and thermal strain.
Indirect measurements of: load, pressure, deformation, vibration, torsion, inclination, corrosion, displacement, electrical current levels, flow by means of instruments such as accelerometers, inclinometers, gauges of cracks/LVDT, inclinometer poles, deformation gauges, etc.; all fiber optic instruments.
Seformations can be read remotely via Tablet, PC and smartphone

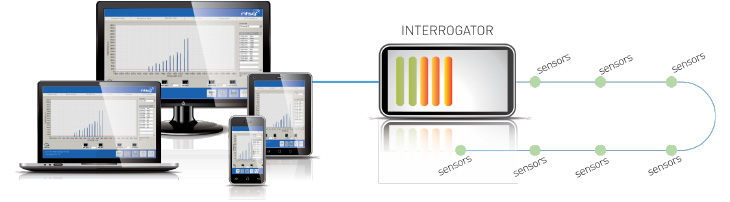

Dozens of sensors of different types, installed on the same fiber, readable at the same time.
The system uses:
FBG – Fiber Bragg Grating – fiber optic Bragg gratings
The grating is “written” in the fiber core with an ultraviolet laser. The grating is the sensor itself. Grating dimensions: 0.5-2 cm.
A peculiar characteristic of the FBG technology is that on a single optical cable can be wired in series, for the measurement of various parameters, using different sensors such as strain gauges, accelerometers and temperature sensors. The acquisition is performed with just one interrogation system.
125µm Coating: 170-250 µm
WITH HUMAN HAIR
NTSG’s RESEARCH and DEVELOPMENT team files new “OF” PIPE patent
Measurement system for the identification of the presence, position and estimation of the size of a leak inside a pipeline (whether it is water, sewerage or Oil &Gas) and for the measurement of different parameters of the fluid present in the pipeline
NTSG has studied specific solutions for different applications in the water sector:
Thanks to the automatic control of:
